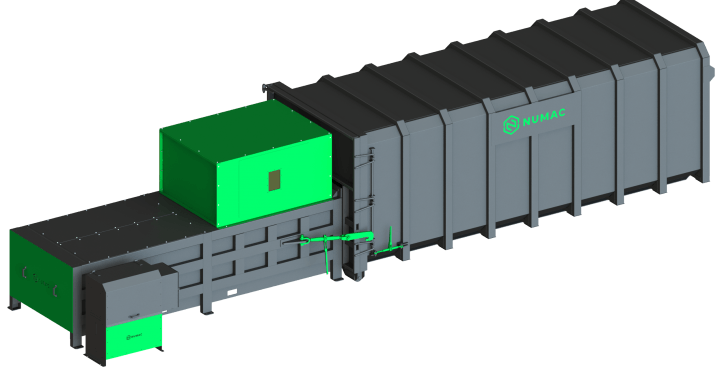

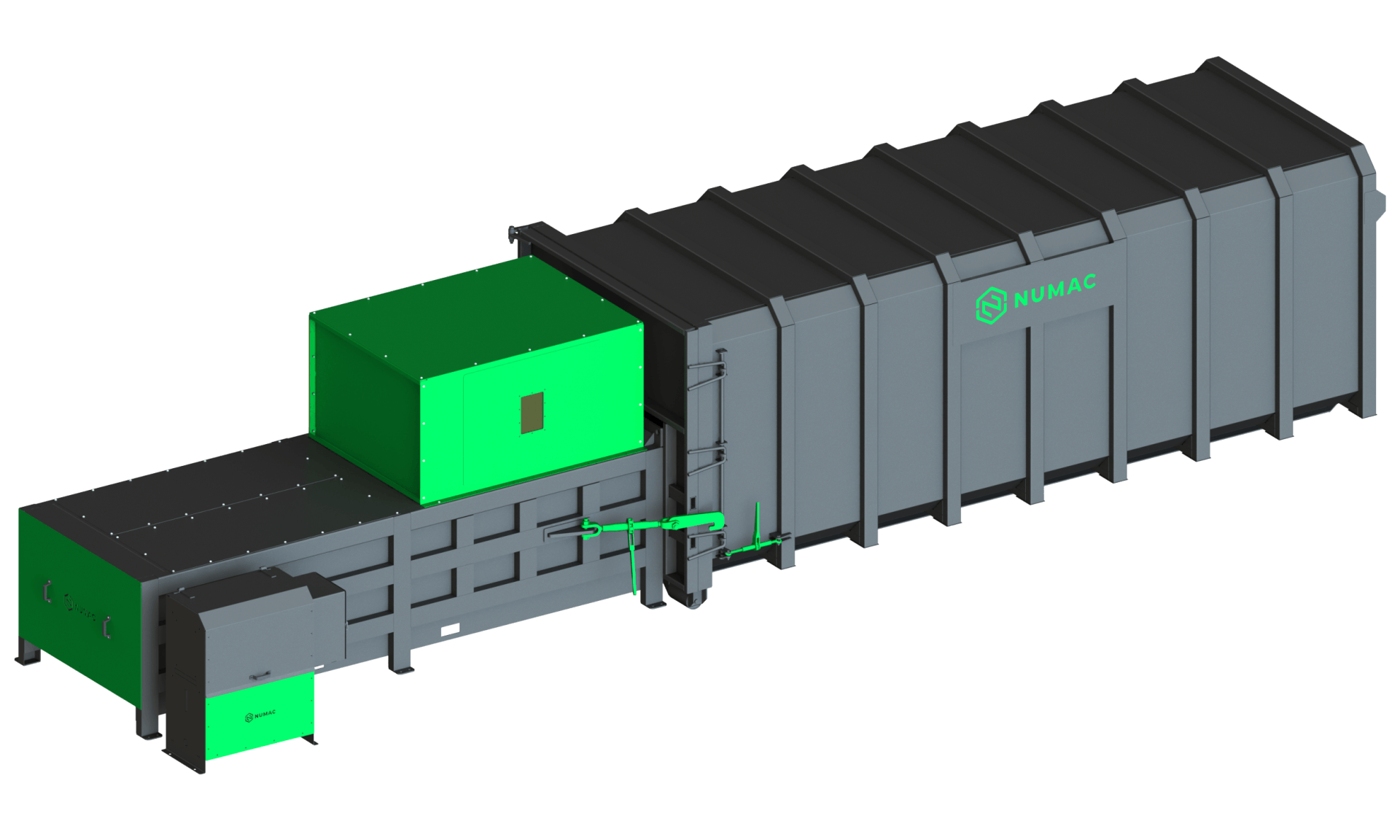

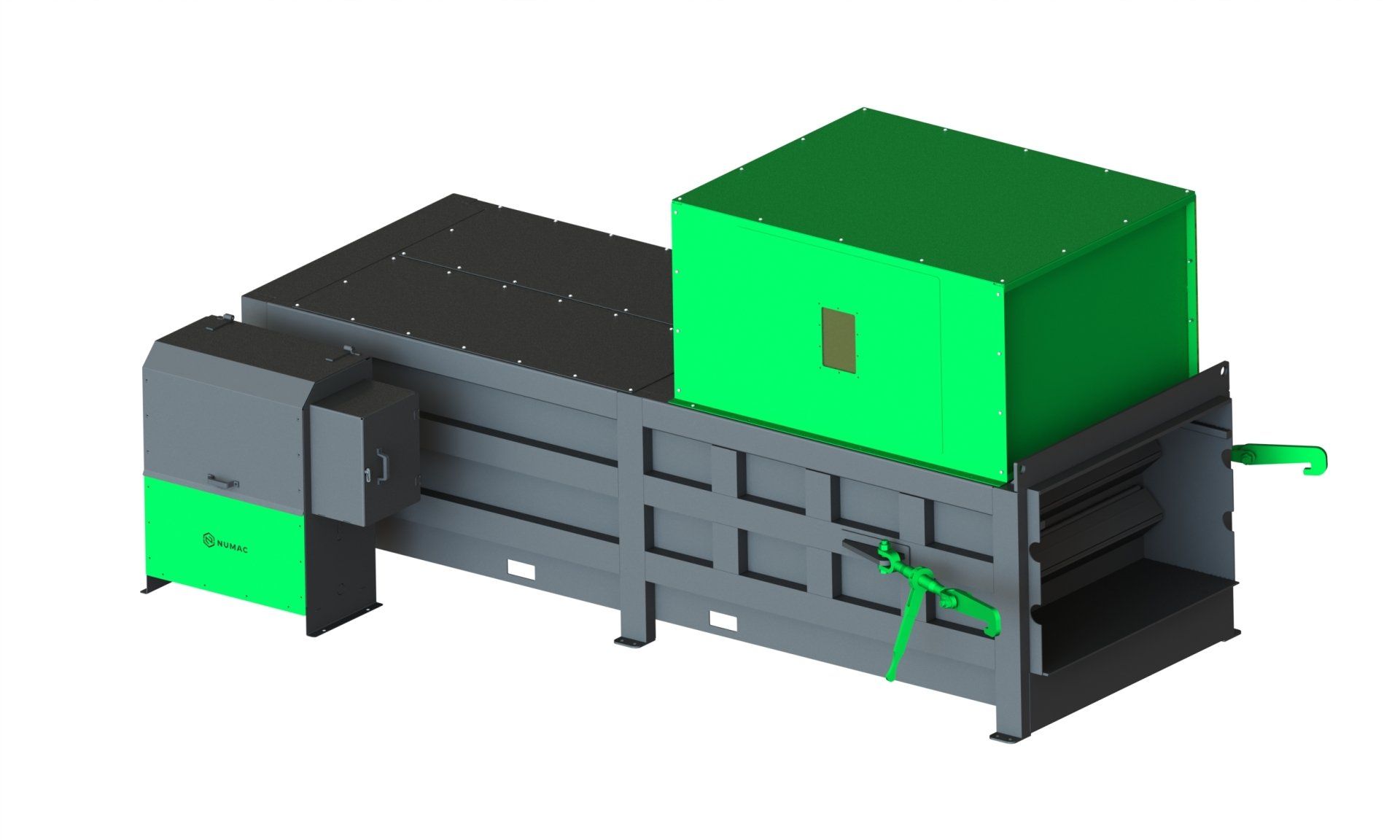

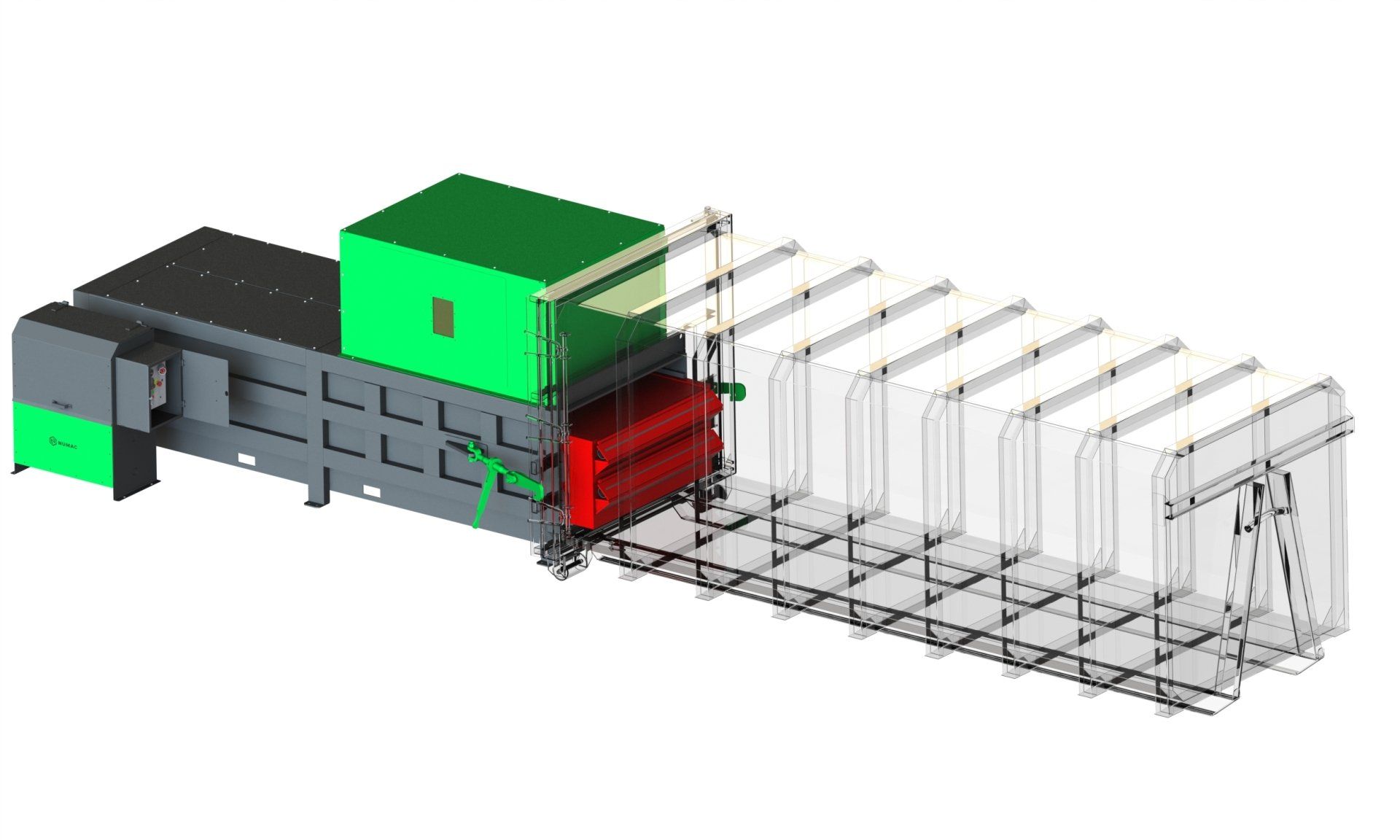

Numac NS80 Static Compactor
Larger Capacity & Throughput
Numac NS80 static waste compactors are ideal for disposing of large volumes of commercial and medium density industrial waste.

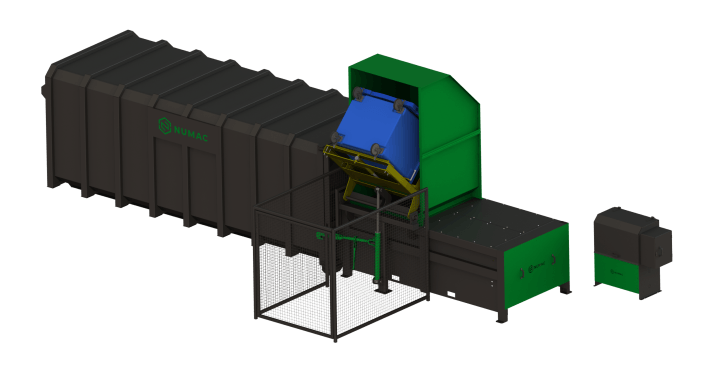

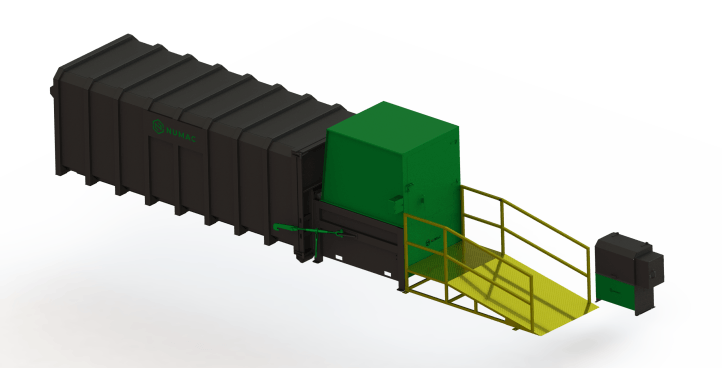

The NS80 is a powerful static compactor designed to fit in areas where space is limited such as underground car parks. We offer 24 hour remote monitoring system that allows you to know when the compactor is approaching capacity. Multiple loading options – ground hand-fed, walk-on, bin-lift or chute feeding. The NS80 offers a larger capacity and waste collection is made easy. Designed and tested to work with any CHEM compliant containers.
The NS80 brings a high-volume hygienic solution to waste management.
| NS80 SPECIFICATION | DETAIL |
|---|---|
| Charge Box Volume | 2.7m3 |
| Motor Size (Kw) | 7.5/11/15 |
| Cycle Time (Secs) | 60s |
| Power Supply | 415V 3 Phase |
| Running Pressure (PSI) | 1800 |
| Boost Pressure (PSI) | 2200 |
| Compaction Force (Tonne) | 25 |
| Penetration Into Container (mm) | 435 |
| Machine Weight (Kg) | 3600 |
| Clear Top Opening WxL (mm) | 1500×1680 |
| Ram Bore / Ram Stroke (mm) | 70/125 |
| Length (mm) | 4600 |
| Width (mm) | 1950 |
| Head Face Area (m2) | 1.08 |
- Efficient Collection & Disposal.
- Minimal Space Requirements.
- Provision of 3D CAD drawings

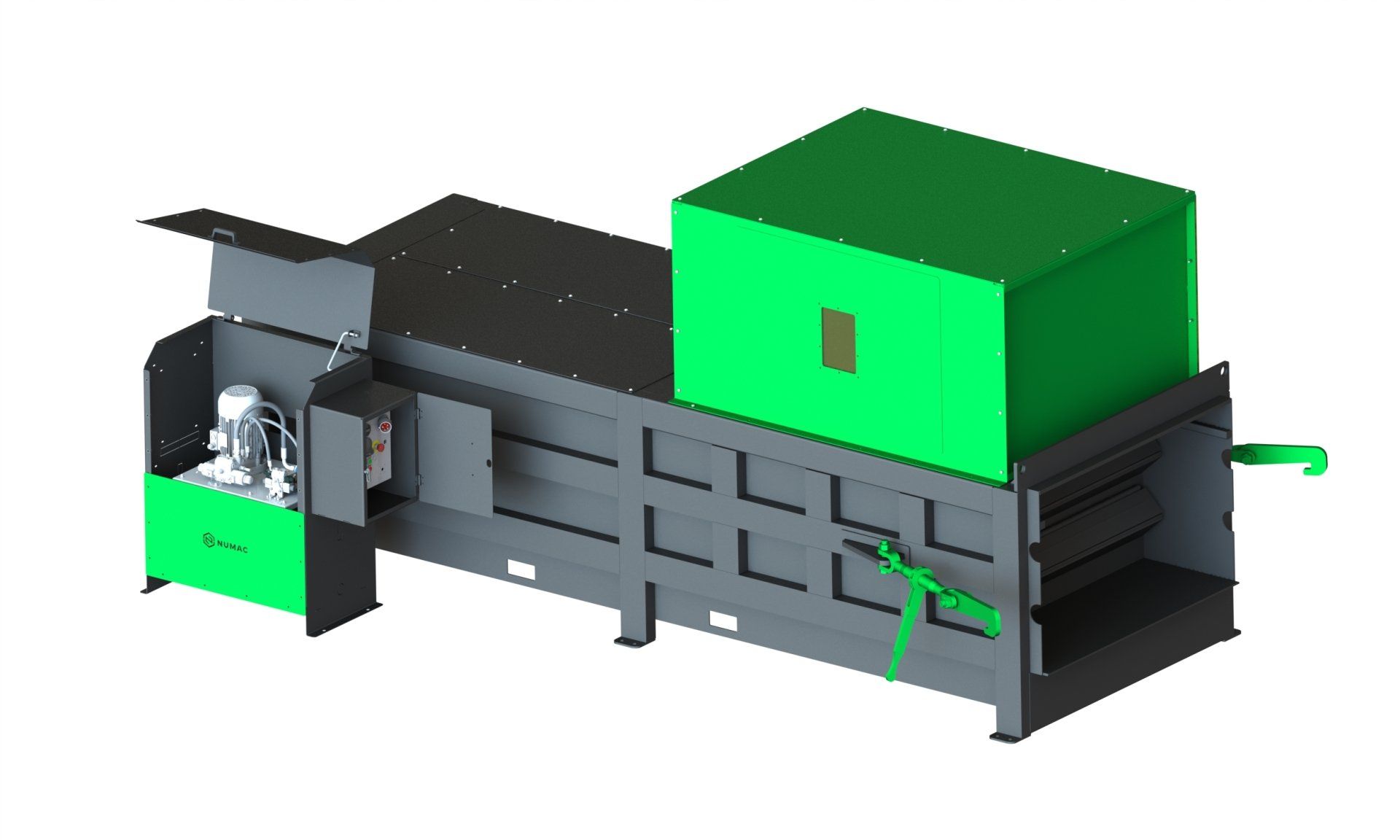

- Easy to use side mounted control panel, security key-pad optional.
- Hoppers can be designed to meet customer specification
Performance Engineering
NUMAC STATIC COMPACTOR RANGE

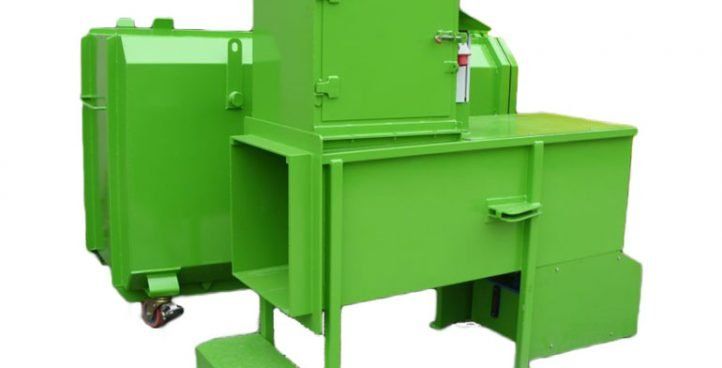

Check Out Our Portable Waste Compactor Range
