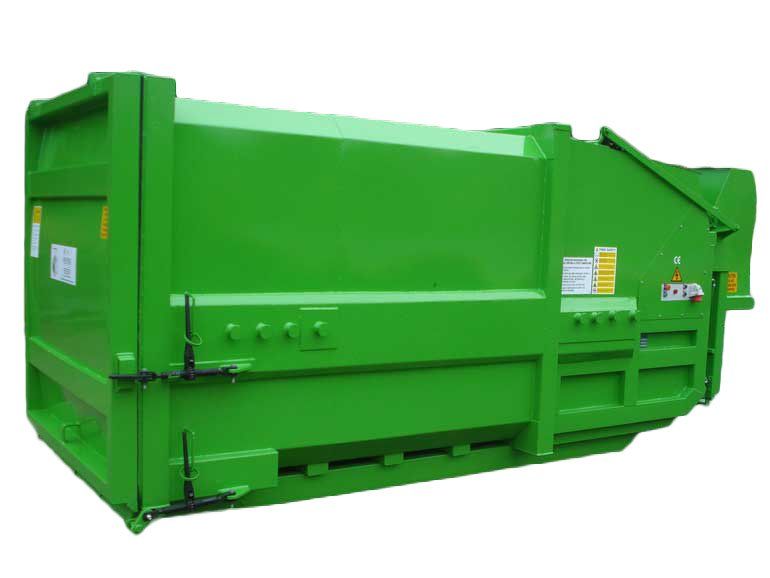

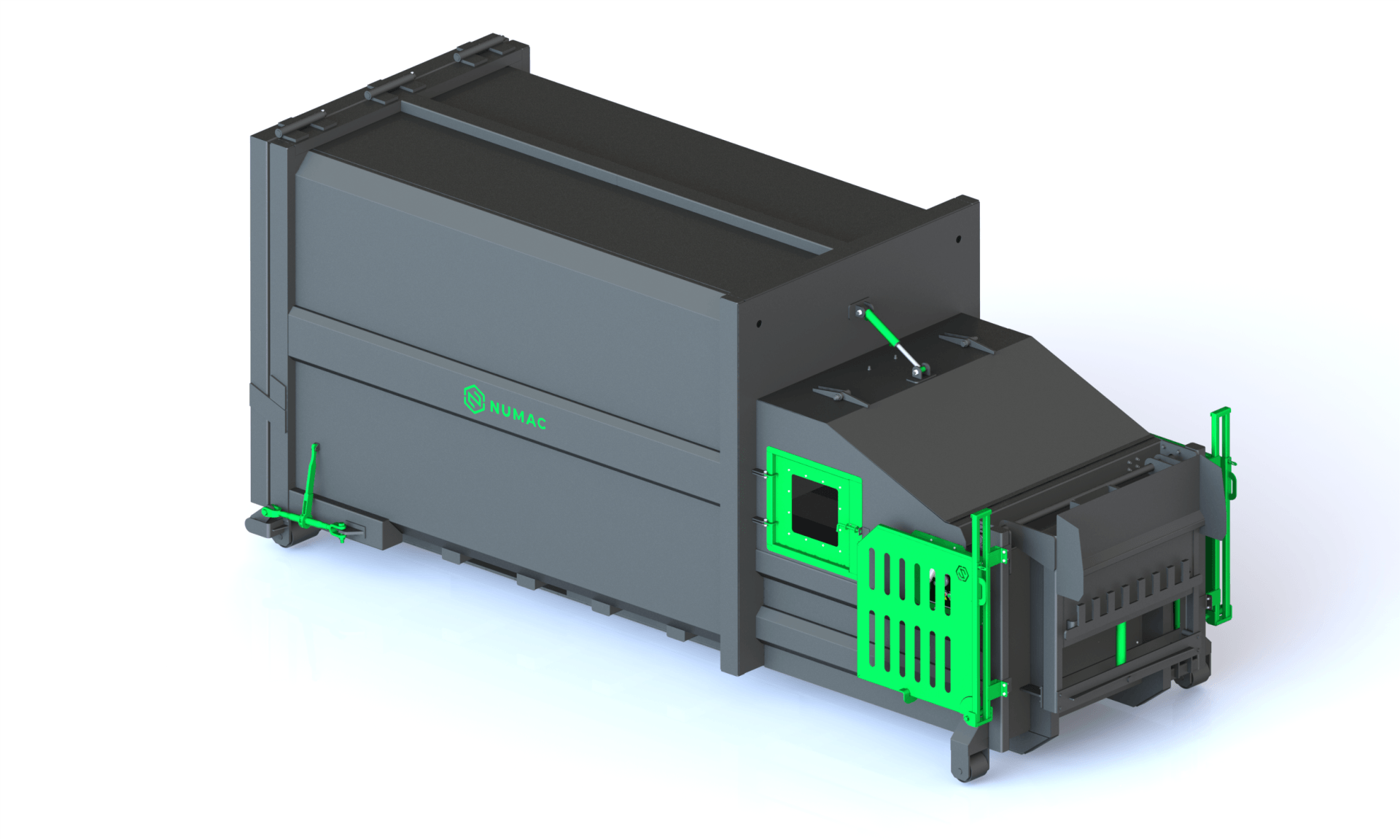

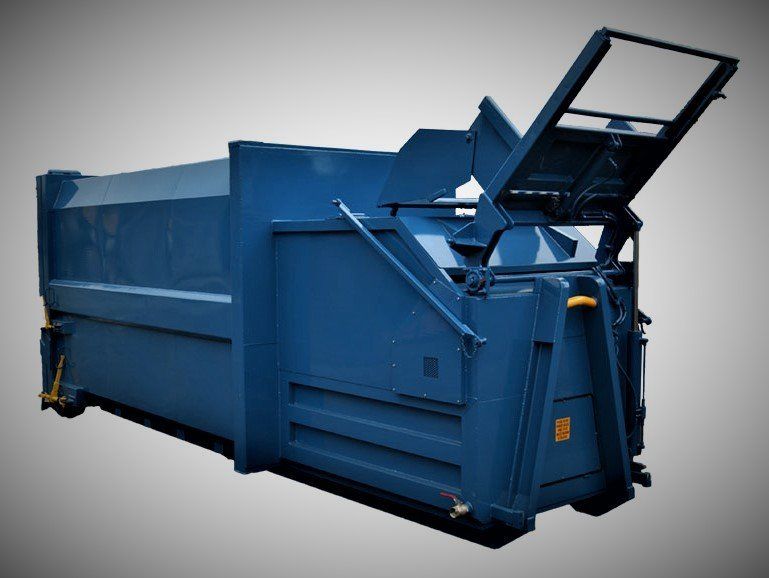

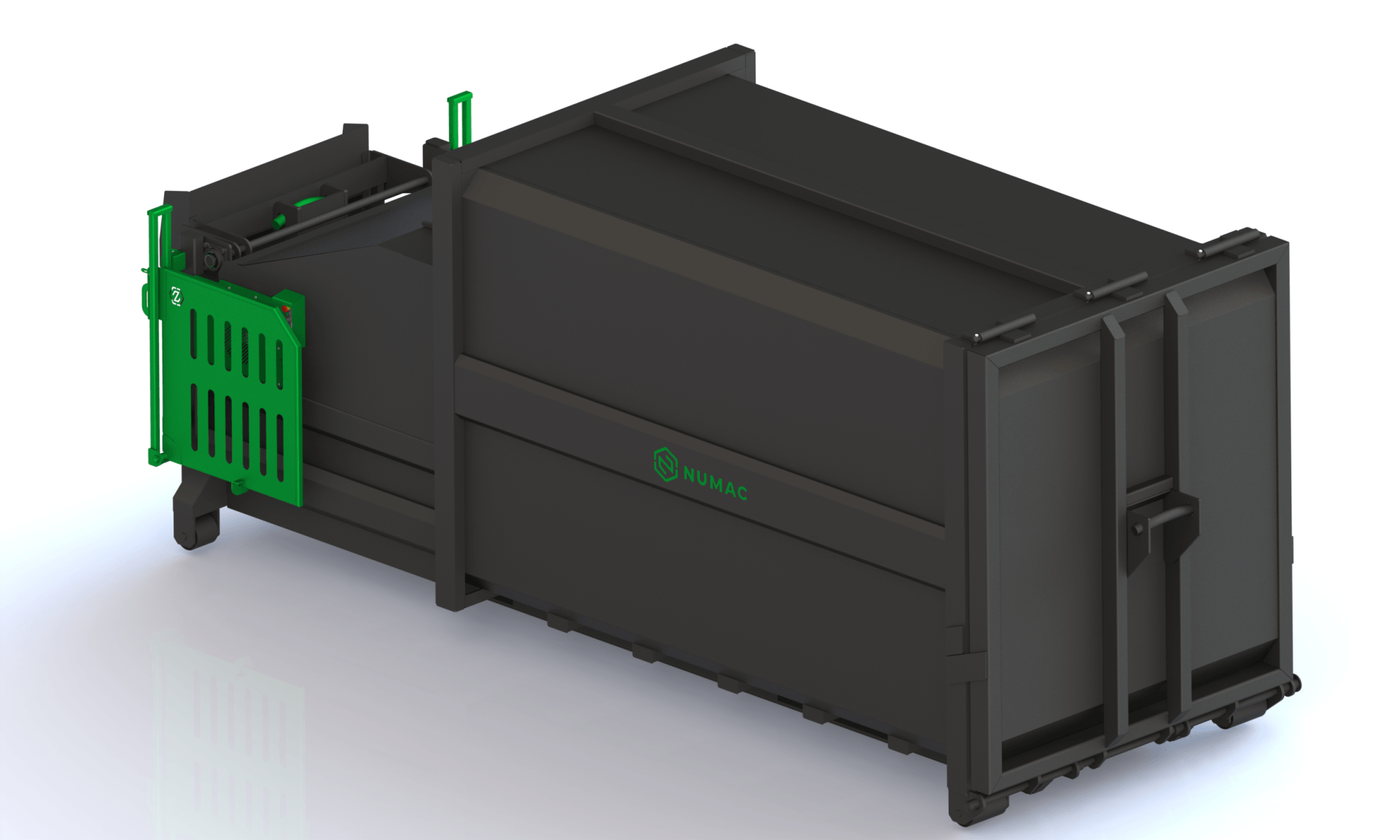

Numac NP50 Portable Compactor

Totally Self Contained Waste Compaction Unit

The Numac portable waste compactor features a ratchet type turnbuckle locking device, which gives a strong, secure seal while being quick and easy to open.

The NP50 portable waste compactor with a fitted multi-purpose bin-lift is a totally self contained waste compaction unit enabling the disposal of large volumes of waste. It is particularly suitable for commercial and food waste generated by larger retail and commercial outlets, office blocks, larger catering establishments, hospitals and factories.


The controls are simple, and contained within a secure, lockable, vandal-proof cabinet. When the unit is full, the unit is removed and emptied by roll-on/off demountable body vehicle.

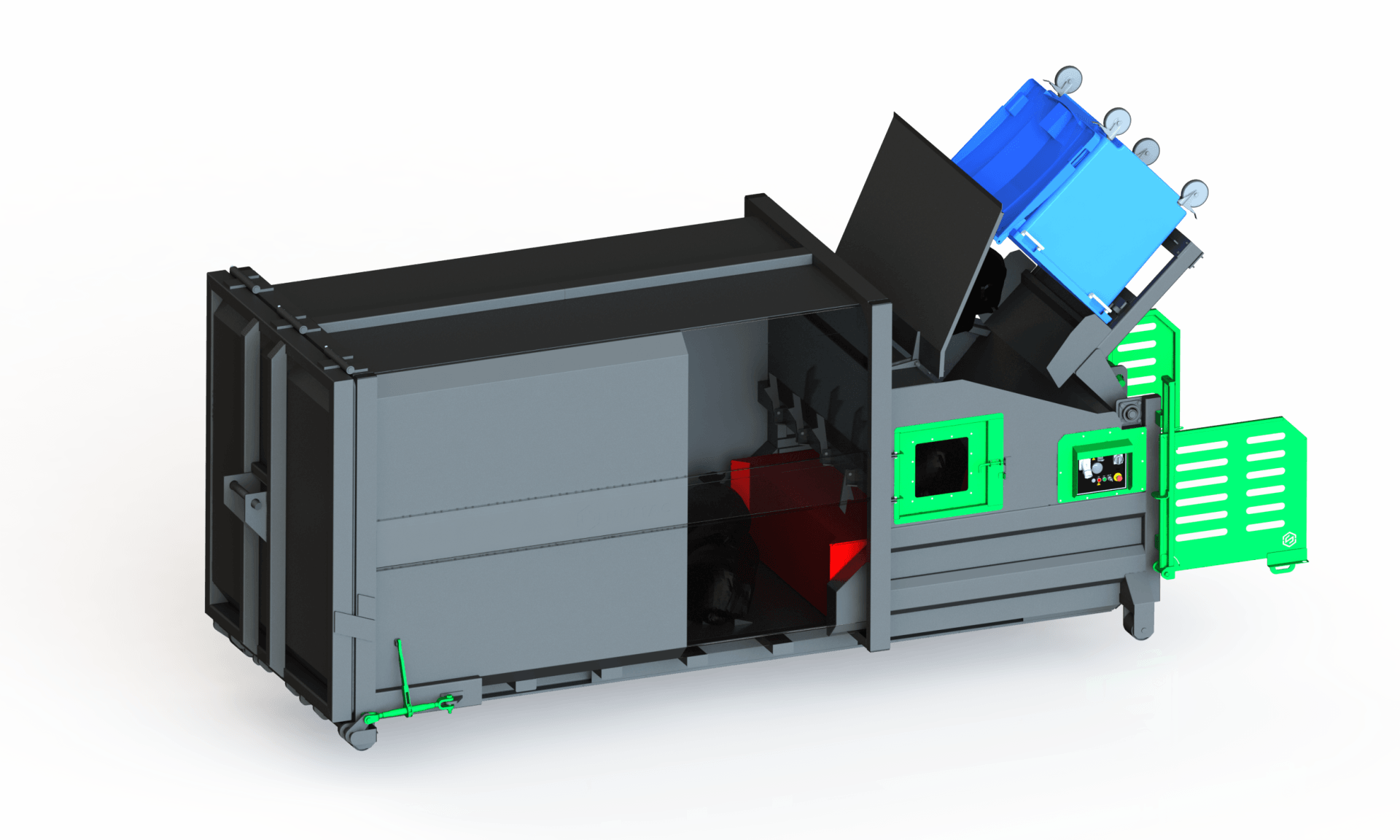

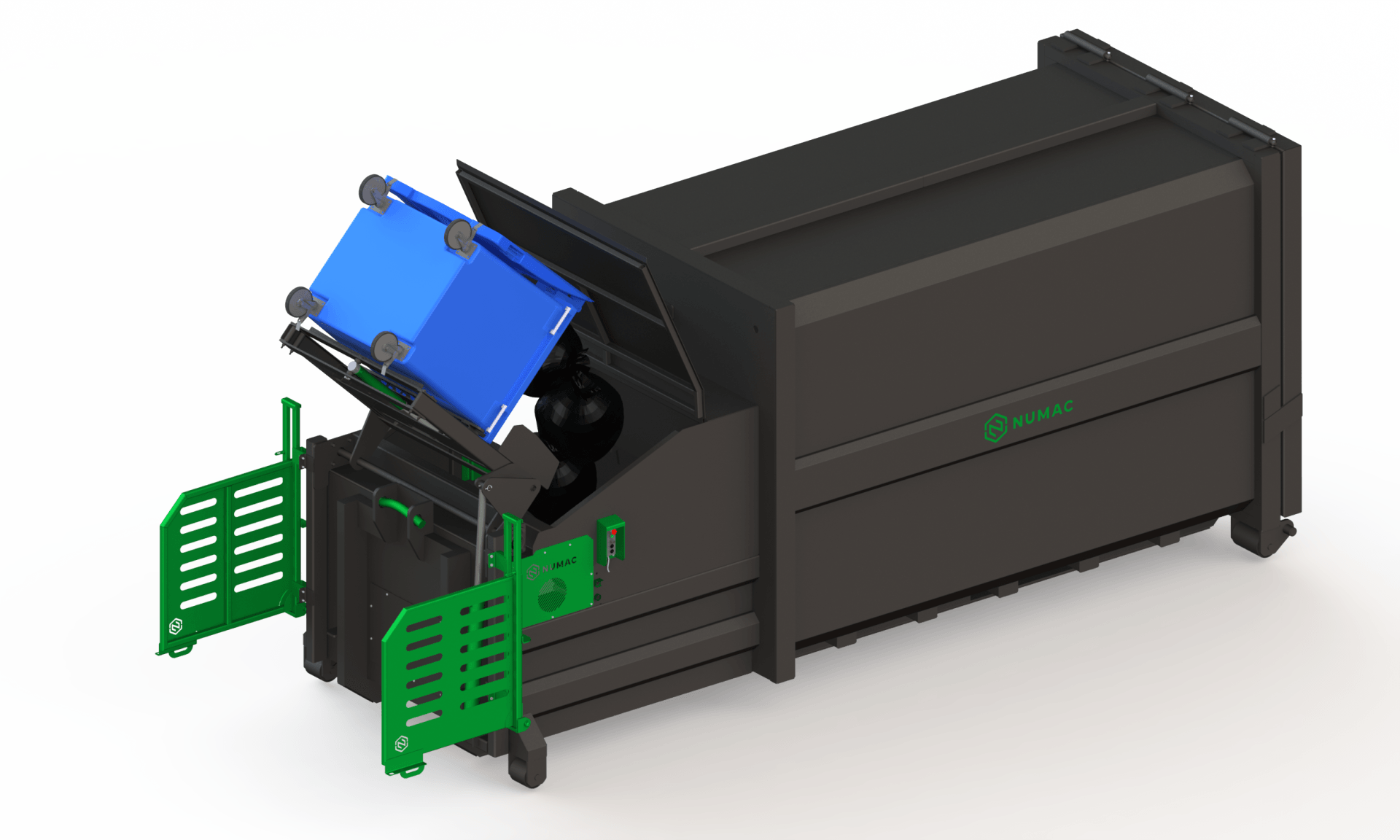

The Numac NP50 can be loaded via safety hopper and fork tip, manually via safety doors or by an automatic hydraulic tipping device suitable for emptying wheeled Euro Bins.

DOWNLOAD NP50 TECHNICAL SPECIFICATION

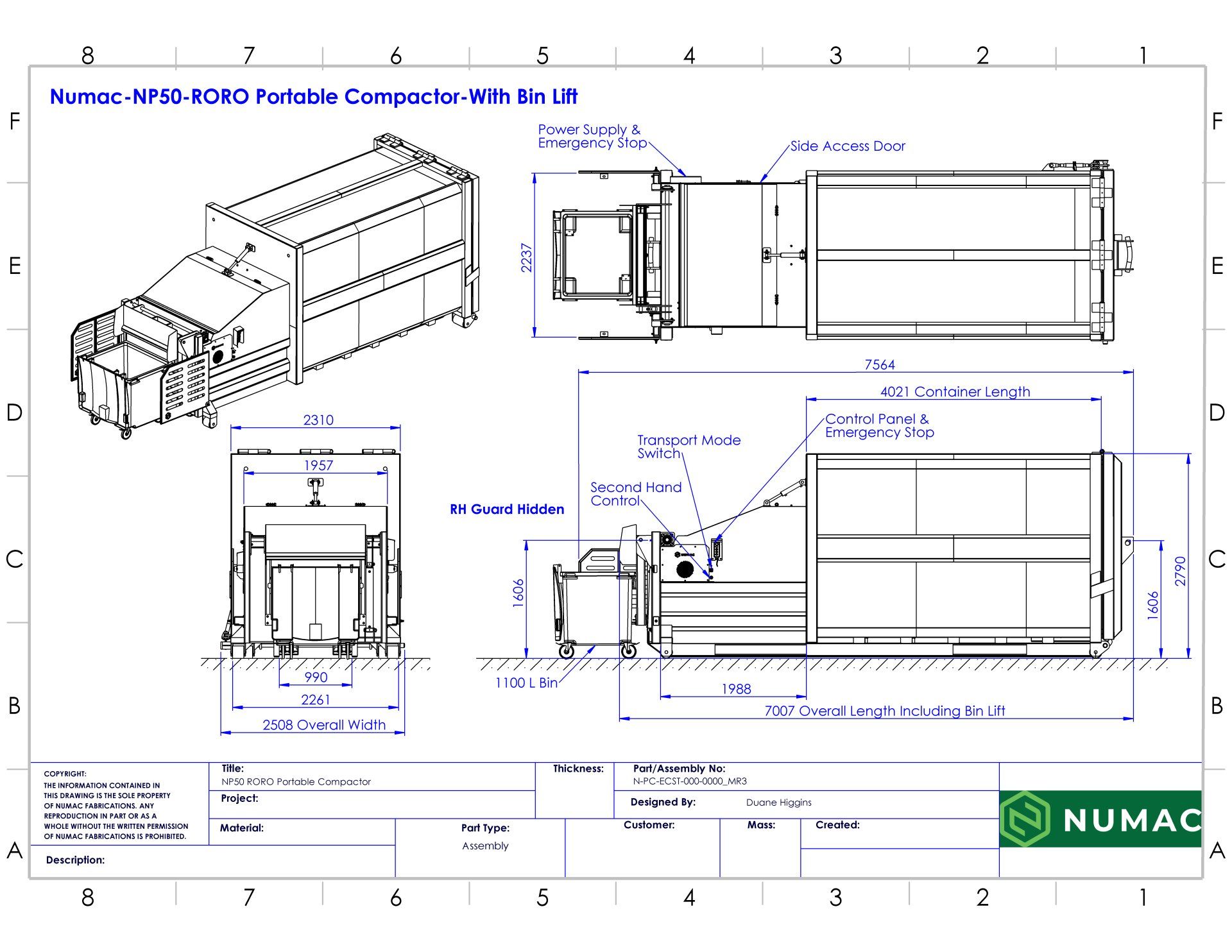

NP50 SPECIFICATION DETAIL
Charge Box Volume 24m3
Motor Size (Kw) 5.5Kw
Cycle Time (Secs) 45s
Power Supply 415V 3 Phase
Running Pressure (PSI) 1600
Compaction Force (Tonnes) 25
Ram Bore (mm) 100
Ram Stroke (mm) 930
Length (mm) 6500
Width (mm) 2300
Height (mm) 2800
Machine Weight (Kg) 5500
Head Face Area (m2) 0.75
  • Top Coated To Suit Customer Colours
  • Fully Sealed
  • Easy-to-use
  • Efficient Collection & Disposal.
  • Fitted With Safety Guards or Cage
